Replacing The Baffles

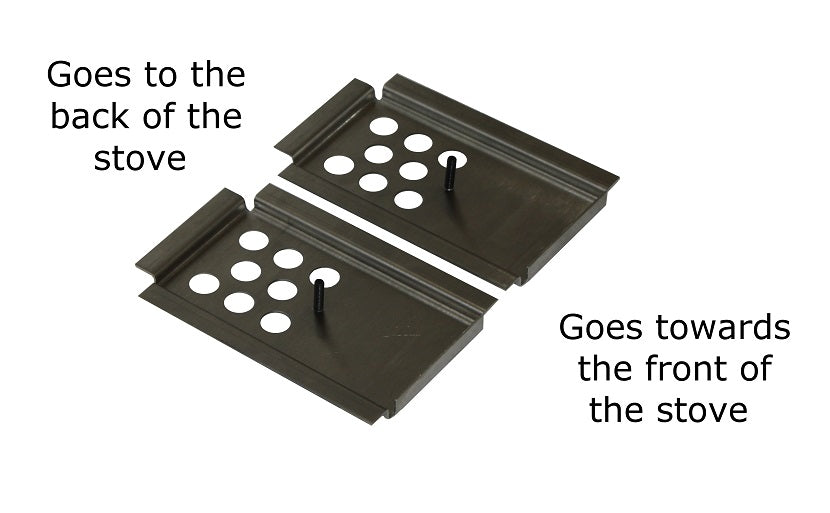

Baffles get installed with the holes towards the rear of the stove. The 3 flanges of the baffles go on the back insulation, the side insulation and the channel running from back to front on the top of the stove. Stove. The screw applies pressure on the top plate to keep them in place.

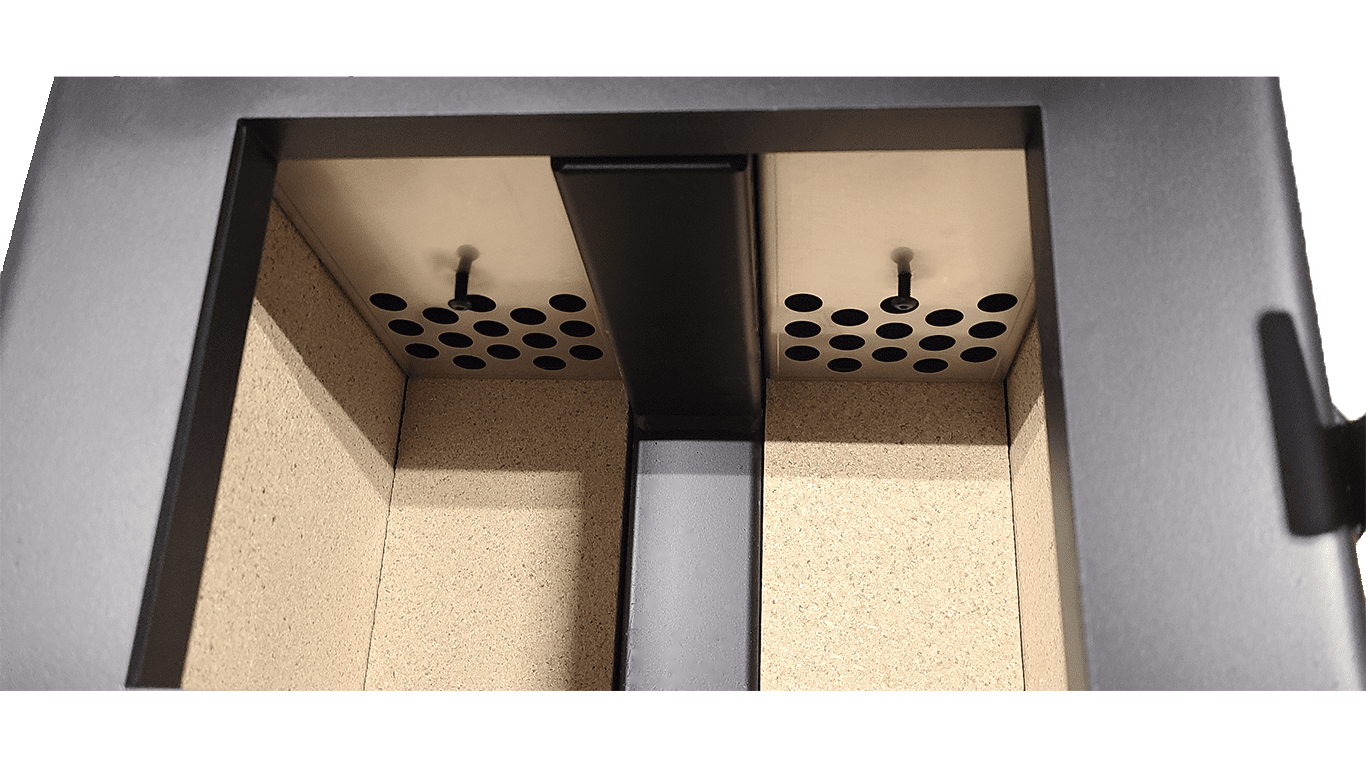

To remove the old baffles, loosen the screw to create a space between the screw and the top plate. This will allow the plates to be pushed up, tilted and then dropped down. The new baffles can be placed as seen in the image above and the screws tightened to keep them and the insulation in place.
