For certified installations in Canada and the U.S.: Maintain at least 18" (45.72 cm) from the outside surface of the 3" flue pipe to any combustible surface. Position the stove and mount to maintain this pipe clearance. In Canada, shielding does not reduce the 18" pipe clearance. For U.S. installations, use the 18" clearance specified in the certified manual unless a reduction is explicitly approved by the authority having jurisdiction. Stove shielding and pipe clearances are separate requirements.
Couldn't load pickup availability

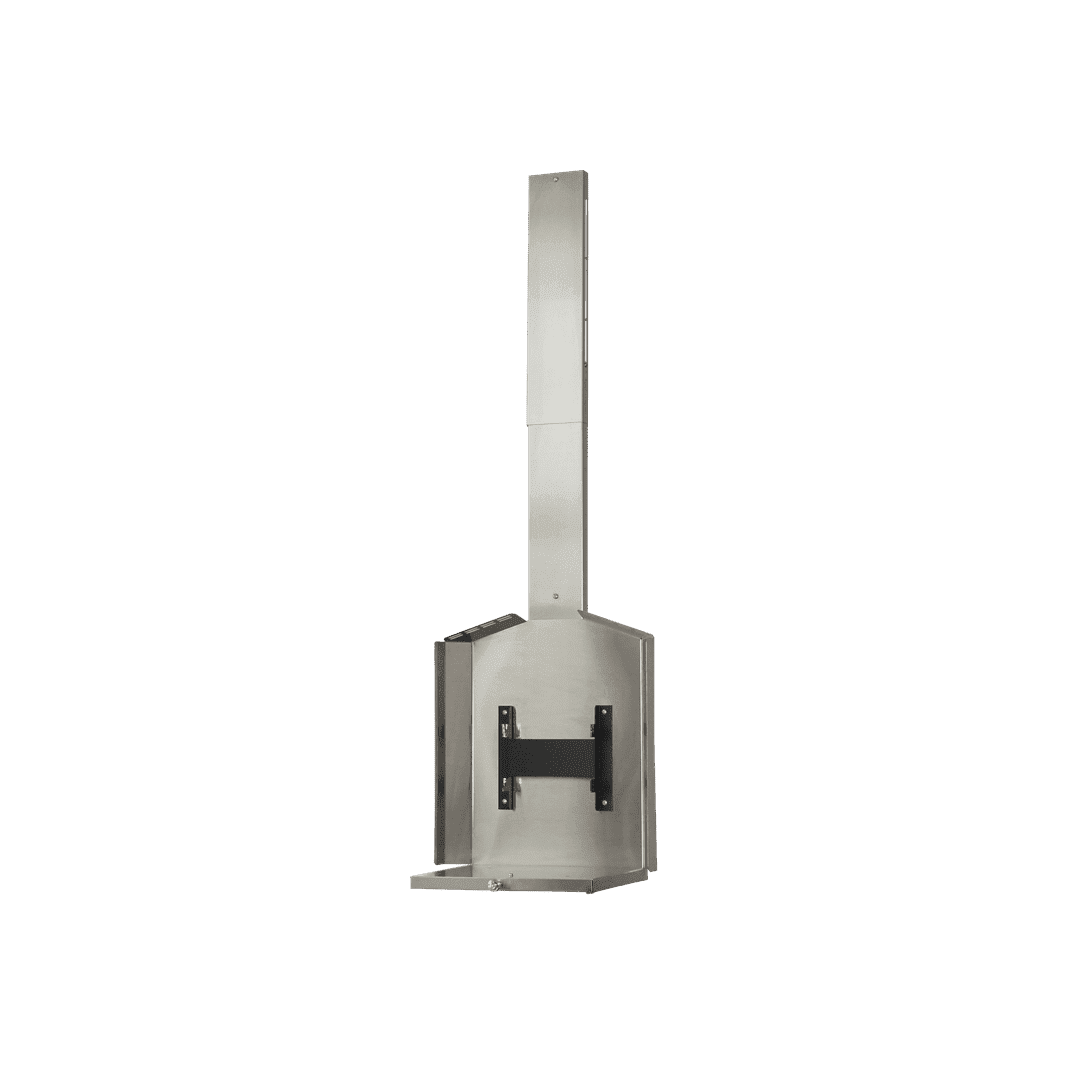

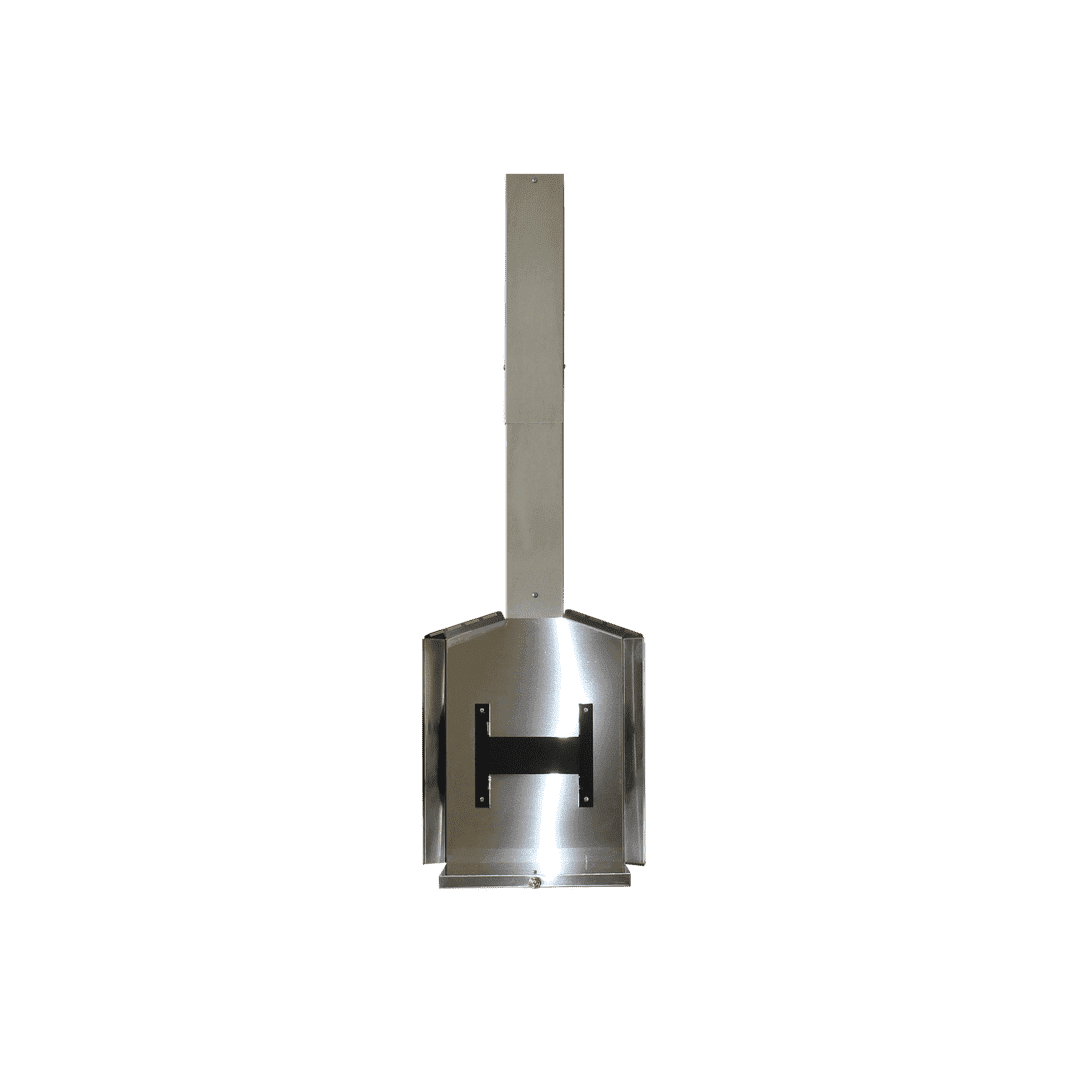

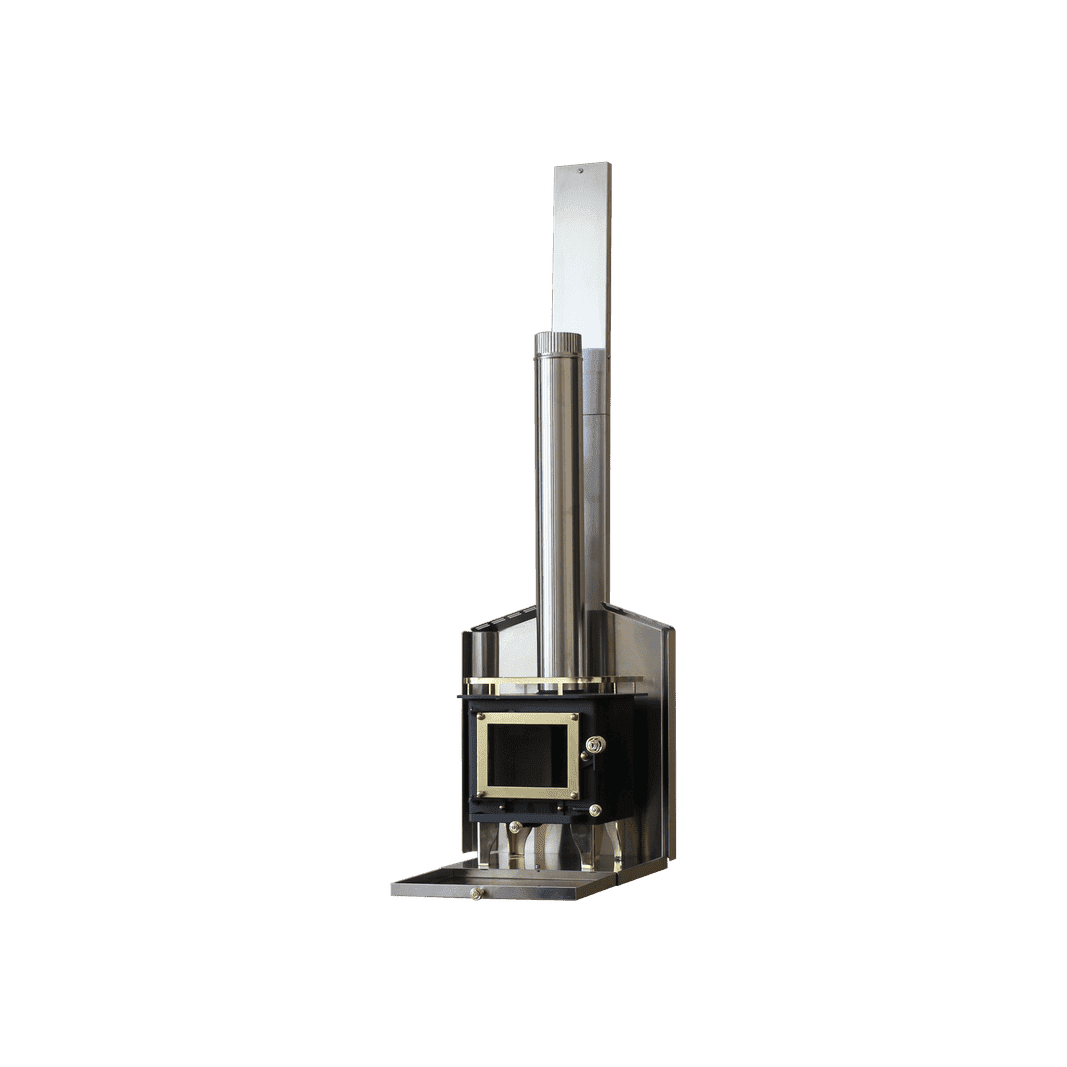

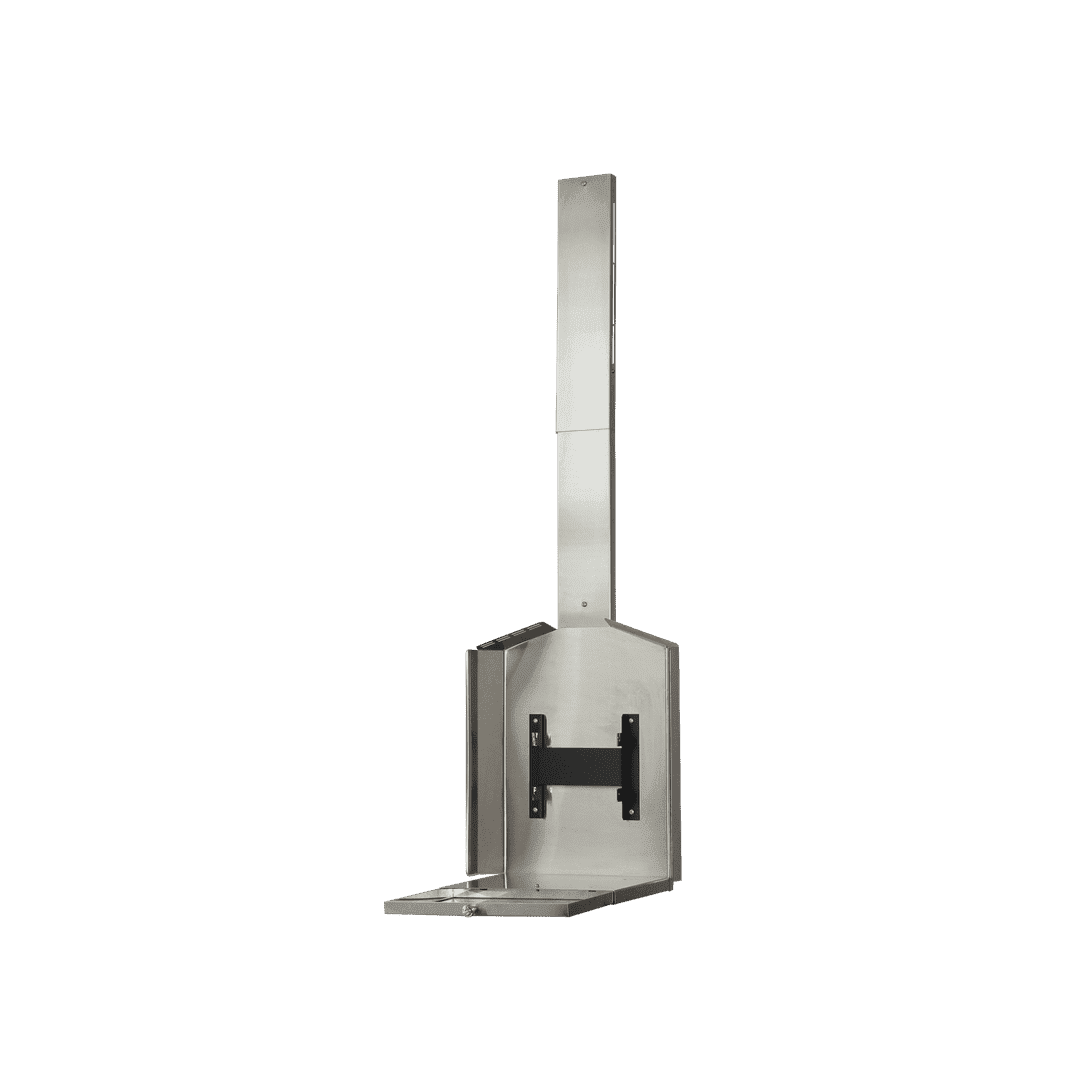

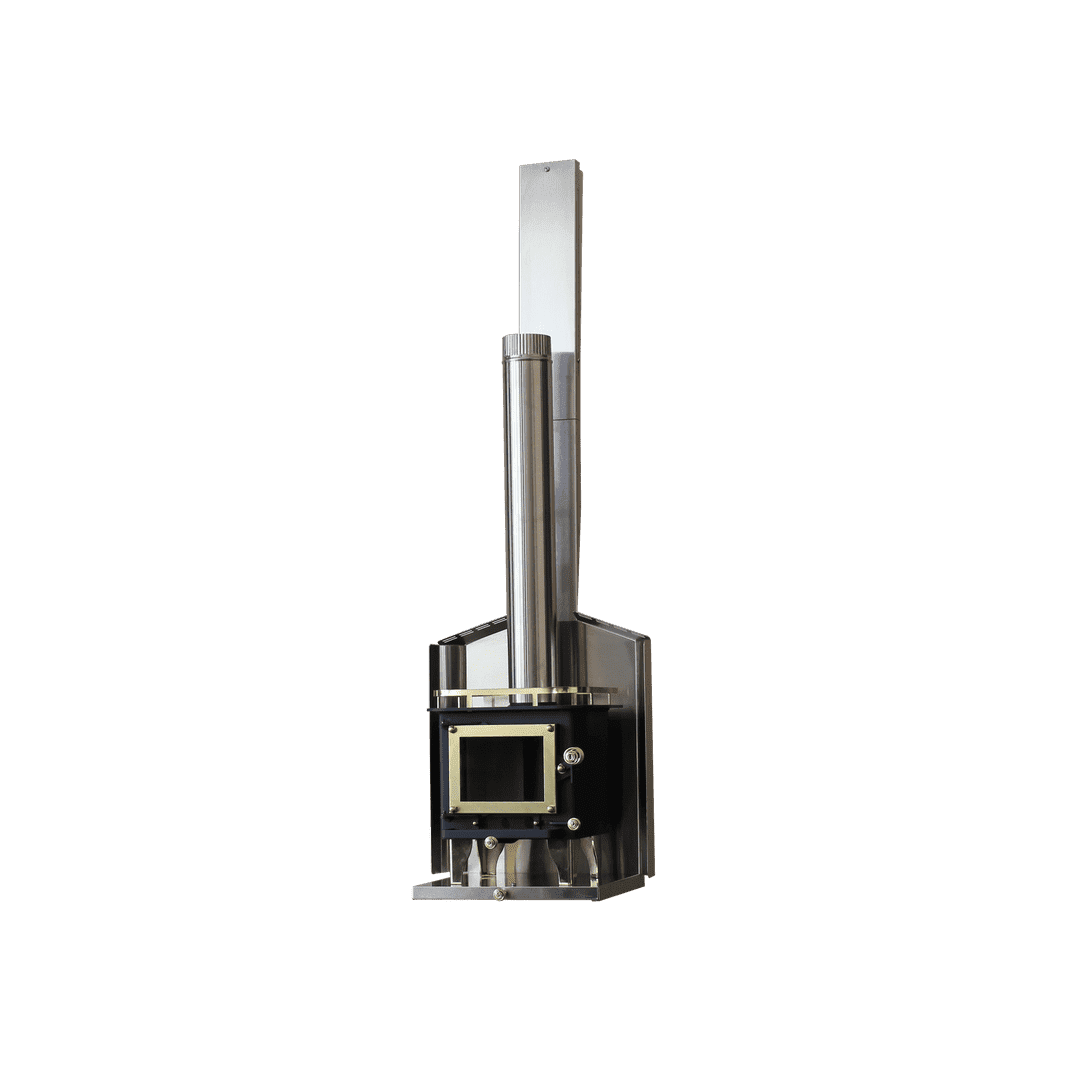

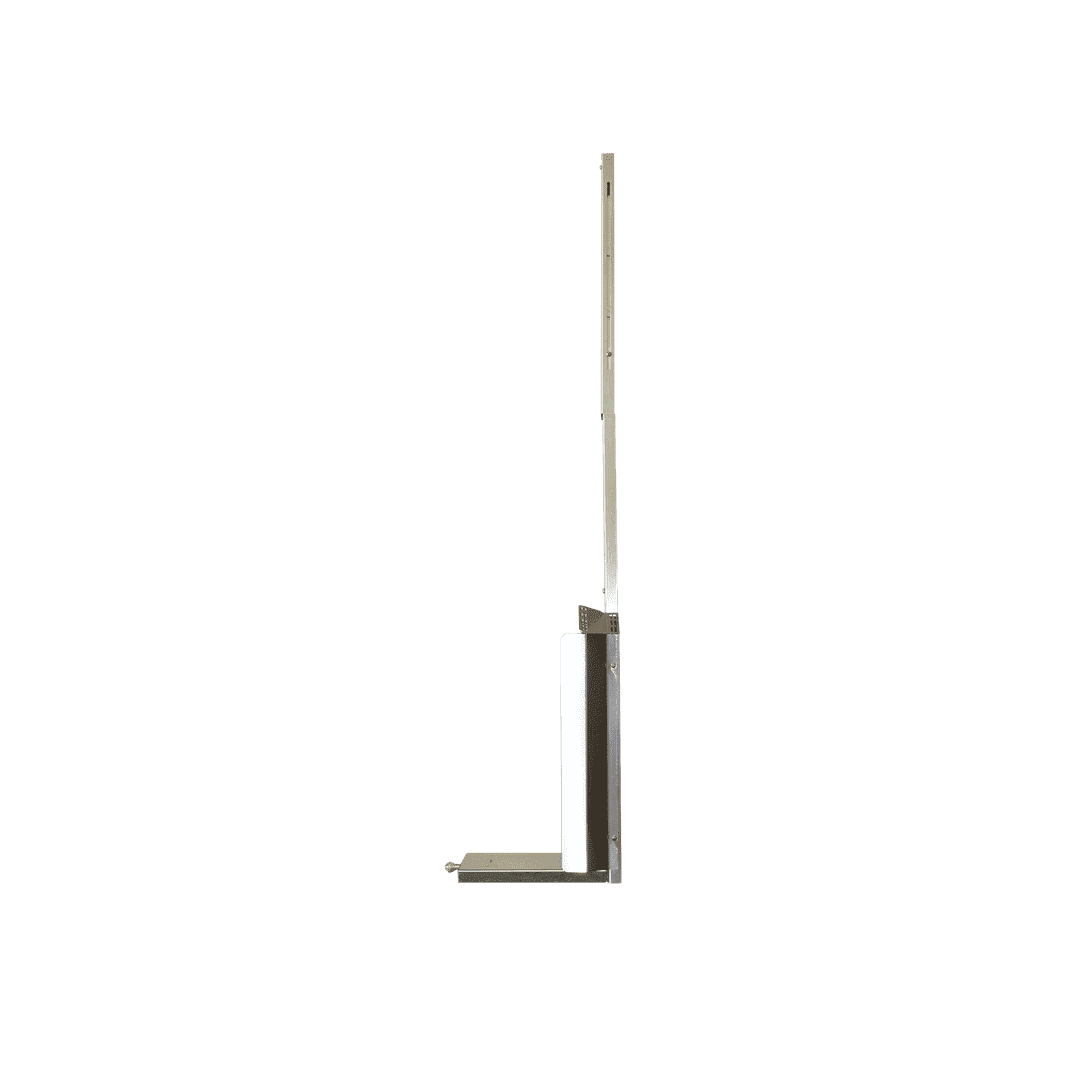

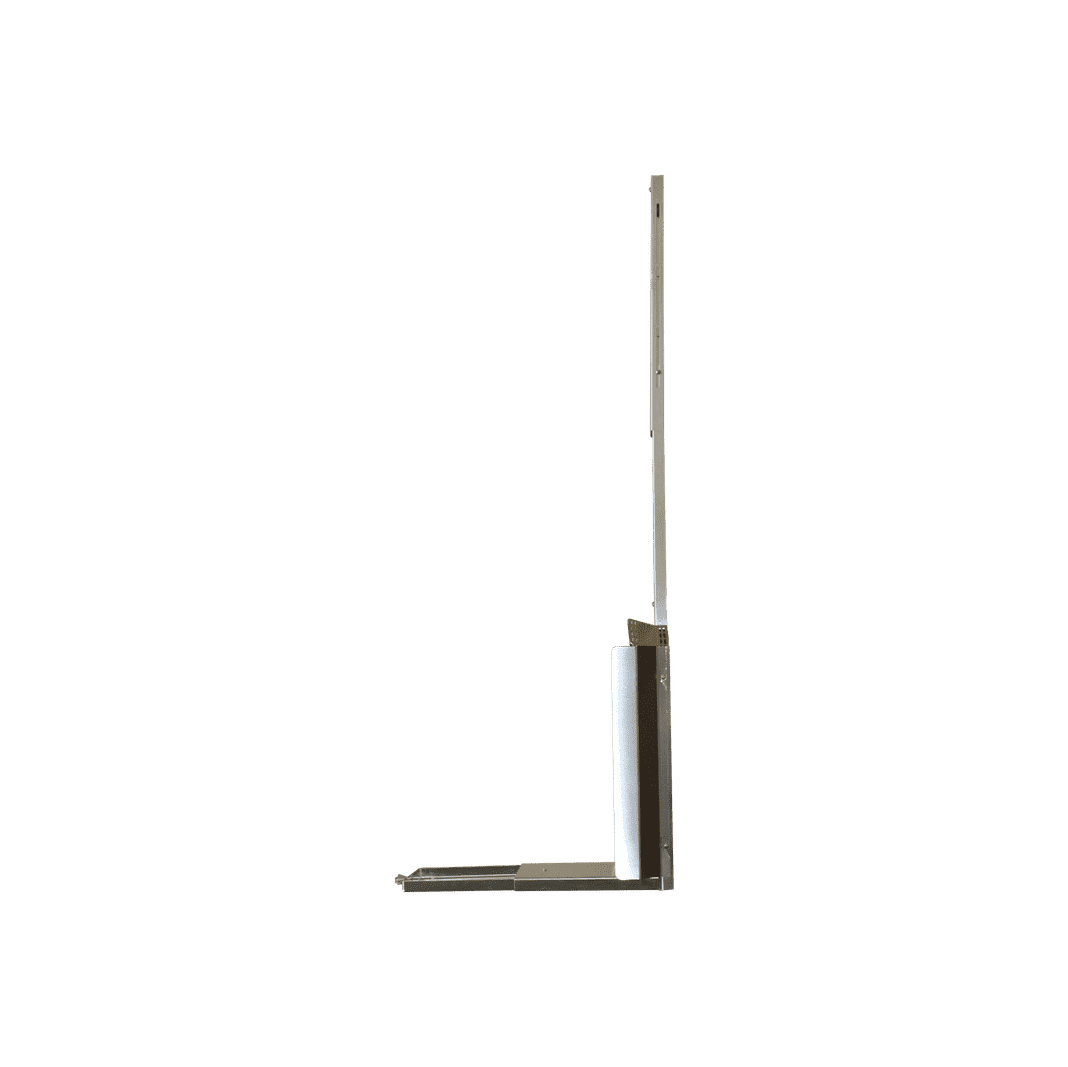

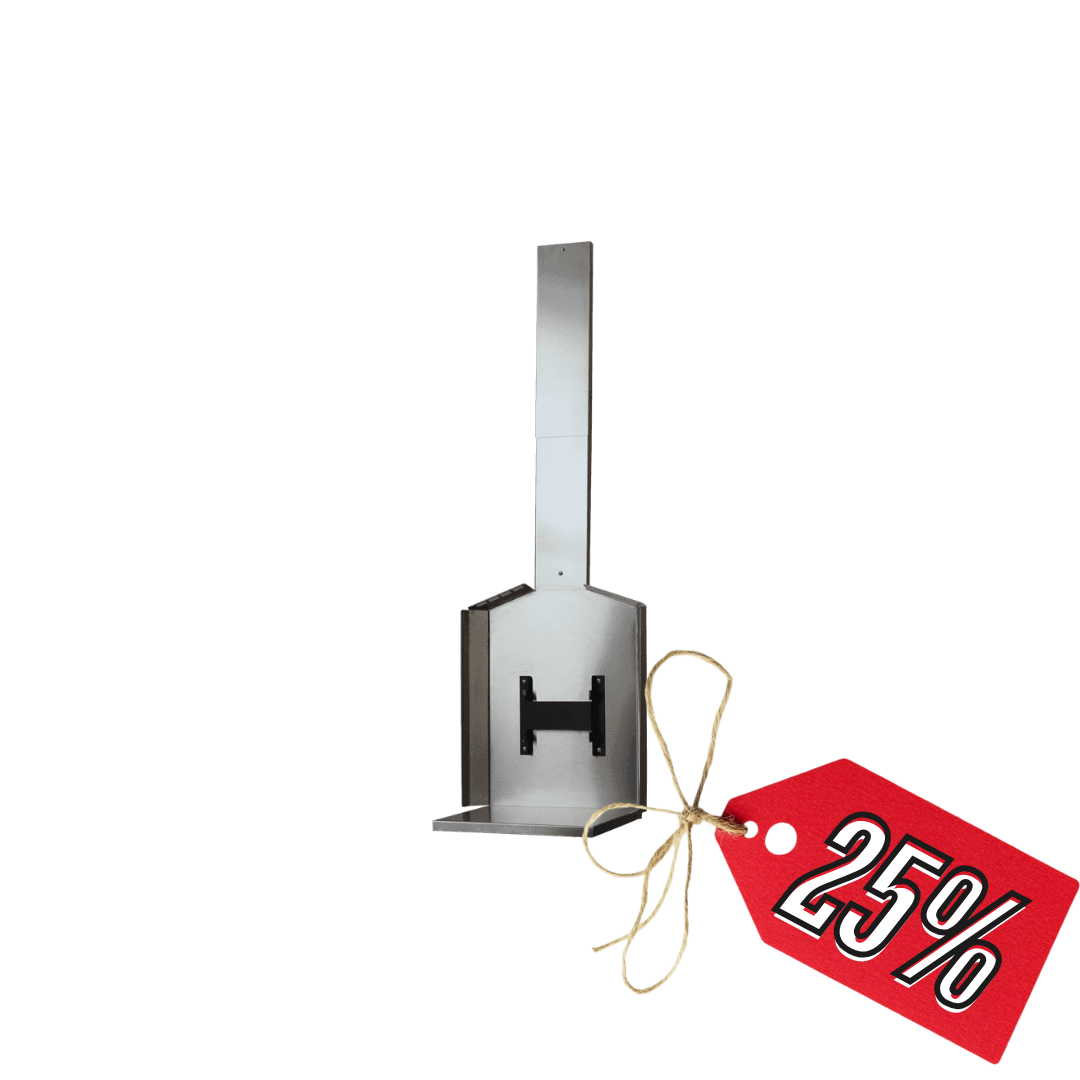

This elegant mounting option facilitates the installation and protects your wall against the heat produced by the stove. The sliding tray gets pulled out when refilling or cleaning the firebox to prevent ashes or embers from falling on the floor.
Comes with 37" of flue shielding. The flue shield must run behind the pipe the entire way up the wall. If you have more than 37" of flue pipe inside, you will need enough flue shield extensions CB-2015-30-SS to cover the rest of the way.
Comes with side guards to prevent heat from spilling onto the surface it is mounted to.
