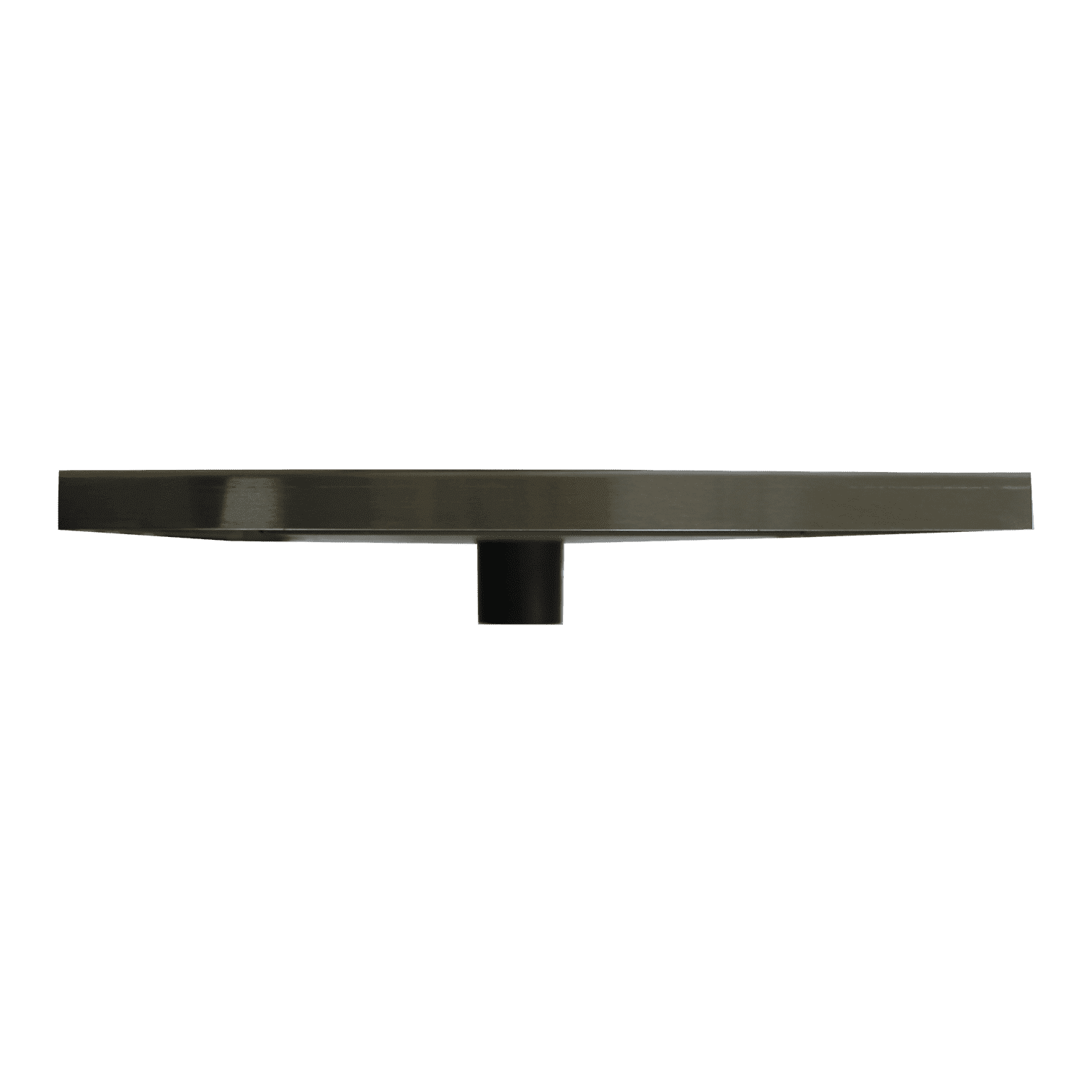

CB-2270-SS Stainless Steel Fresh Air Intake Upgrade (Grizzly)

• The fresh air intake manifold located at the bottom tray, allows fresh air to be drawn through a wall or a floor using a 2 inch flex hose (not included) and brought to the area where the stove draws its air from.

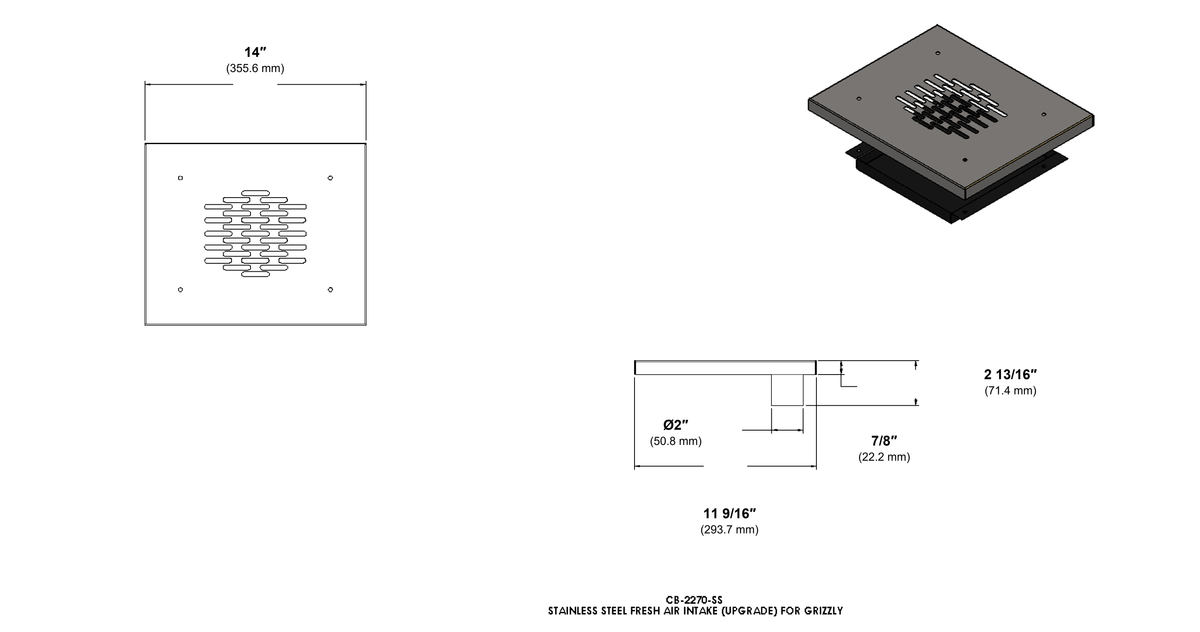

Open full-size diagram

• 14"(35.56cm) wide
• 11 9/16"(29.37cm) deep
• 7/8"(2.22cm) thick

• Replace the bottom shelf with this stainless steel fresh air intake for existing stainless steel Wall mount CB-4012-SS
• ONLY for those who already have the Wall mount CB-4012-SS

• Stainless steel
• Mild Steel manifold (located at the bottom tray)

Not Included:

• 2" internal diameter flex hose
• Hose clamp
• Exterior fitting
• Silicon (to seal fitting outside of structure)
