Cubic Mini Wood Stoves
CB-4010 Floor Mount (Grizzly)
CB-4010 Floor Mount (Grizzly)
2 reviews
Regular price
$273.02 CAD
Regular price
$321.22 CAD
Sale price
$273.02 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The floor mount is another easy and secure installation option. Our experts have found that it is ideal for mounting your stove in a tent or a space without walls to mount the stove to. This sleek and robust design performs as a brilliant space saver because it includes a small storage compartment for your wood! Make sure you have at least 20’’ clearance to combustibles from the back of the stove - if not, don’t worry - check out the Floor Mount with rear heat shield CB-2220-SS.
Features
- Ideal for mounting your Grizzly stove in a tent or a space without walls to mount the stove to.
- Includes a small storage space for your wood
- The tool kit CB-3010 will be mounted to the sides of the floor mount when ordered together.

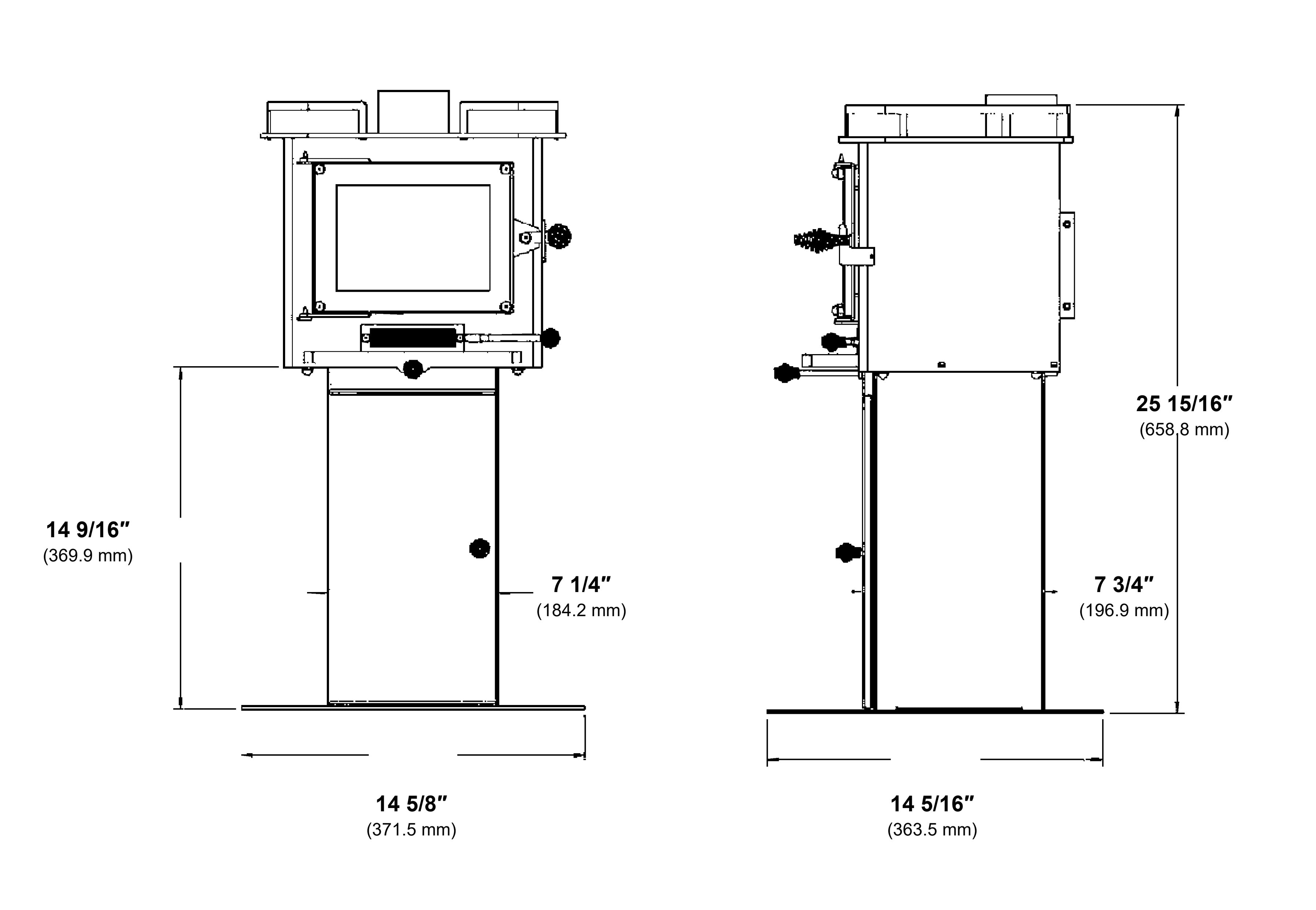

Dimensions
- The top of the stove will sit 24 1/2"(62.23cm) off the ground.
- Height of the floor mount 14 9/16" (37cm)
- Base plate 14 5/8"(37.1cm) wide X 14 5/16"(36.3cm) deep
- Wood storage area 7 1/4"(18.4cm) wide X 7 3/4"(19.6cm) deep X 13 1/2"(34.29cm) tall
Specifics
- The floor mount does not reduce clearances in any direction.
- The legs of the stove are not used when installing on the floor mount
- Wall mount and floor mount cannot be combined, the holes will not align.
- Can be bolted to the floor in order to prevent it from moving around.
- Floor does not need shielding for the heat if the stove, but protection can be installed for possible embers and ash.
Material
- Mild Steel
- Brass plated coil handles
